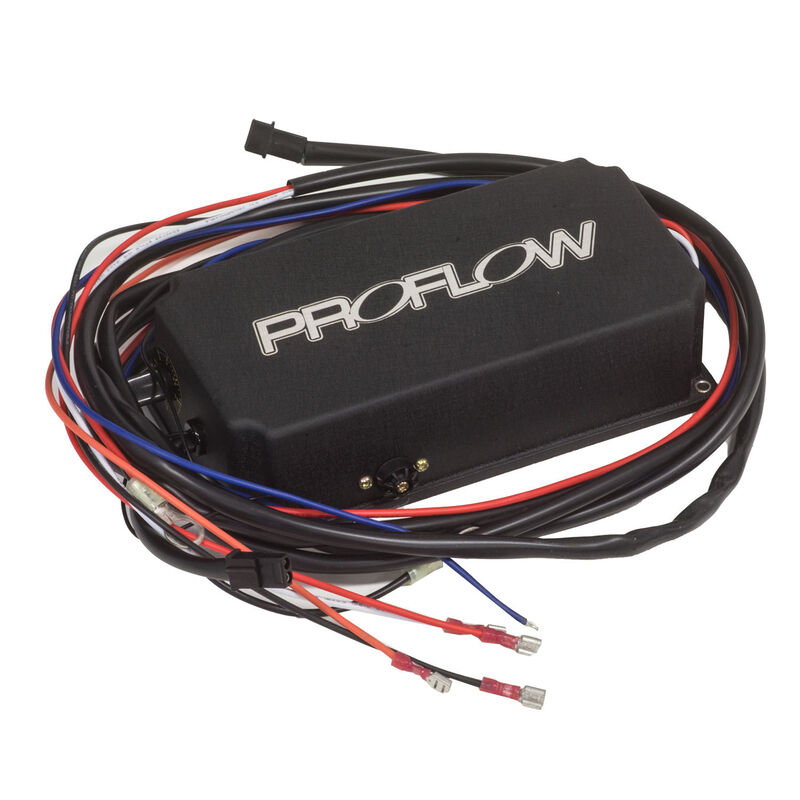

Proflow's Universal black CDI 6AL ignition boxes will increase voltage across the plug gap, improving drivability and performance for everyday drivers. They can be installed on 4, 6 or 8 cylinder engines equipped with a 12 V negative ground electrical system and distributor. These high-powered sparks ensure complete combustion of the fuel mixture at racing RPM, which in turn produces more power! Comes with the option of white wire trigger or 2-wire magnetic pickup connections.

Compatible with PFEIC8202, PFEIC8223, PFEIC92, PFEIC8207 Ignition Coils

Specifications

SPARK 115 mJ per Spark
PRIMARY VOLTAGE 480 Volts
SECONDARY VOLTAGE 44,000 Volts
SPARK DURATION 20 Crankshaft Rotation
CURRENT DRAW 1.0 Amp per 1,000 RPM
VOLTAGE REQUIRED 10-18 Volts
DIMENSIONS 4 1/8" x 8" x 2"
