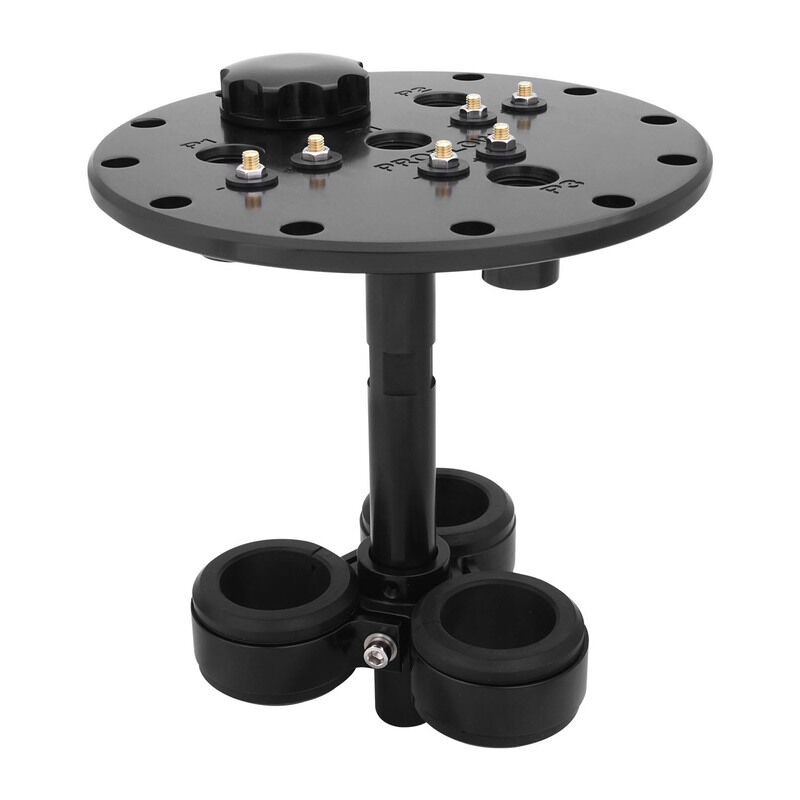

Proflow Triple Fuel Pump Hanger - 2026 Edition

Proflow’s revised triple pump hanger for 2026 takes inspiration from our billet triple-pump surge tank, now featuring a large single AN10 ORB outlet. This unique design merges all pumps into one large central outlet for improved pressure equalisation and simplified plumbing, eliminating the need for external couplers. This is possible because all compatible fuel pumps incorporate built-in check valves.

Pump Compatibility & Mounting

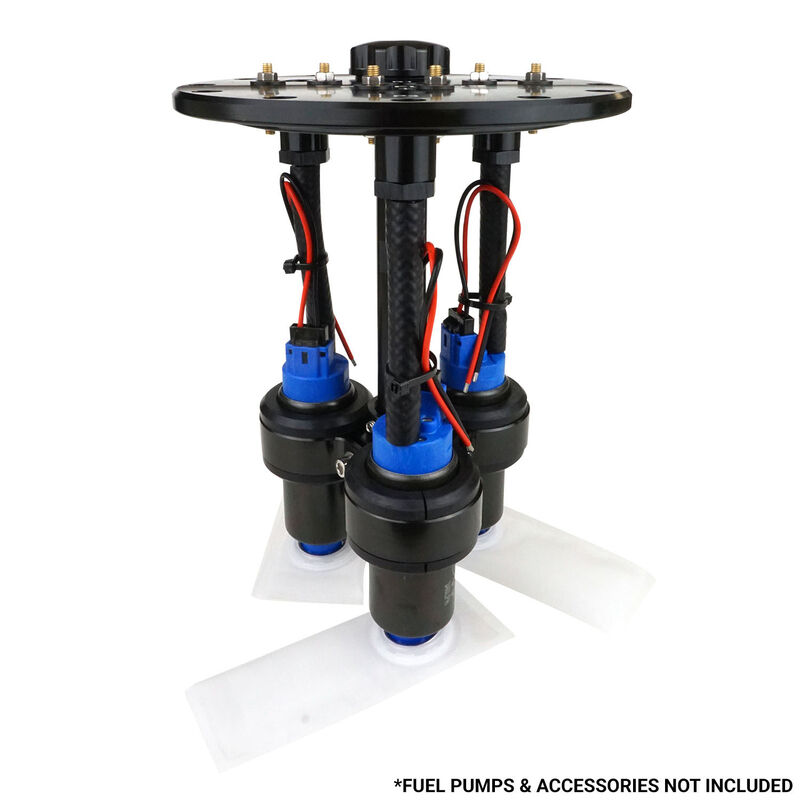

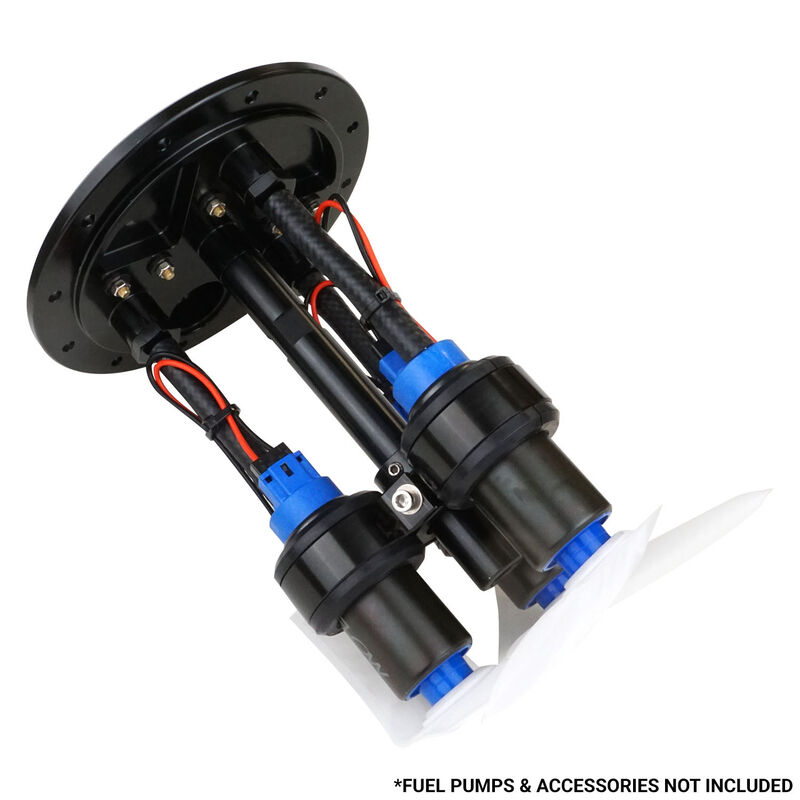

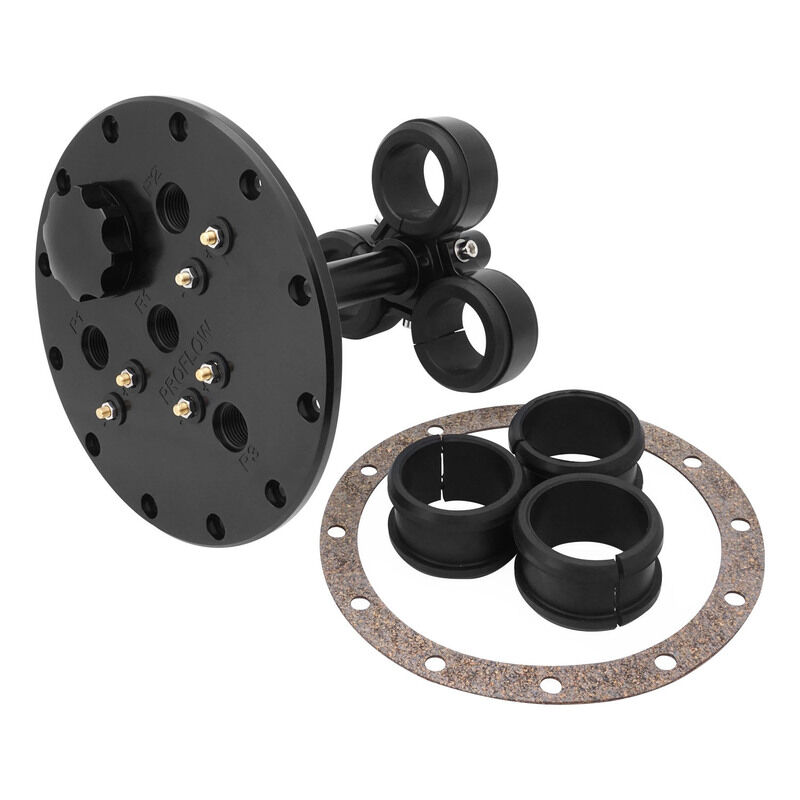

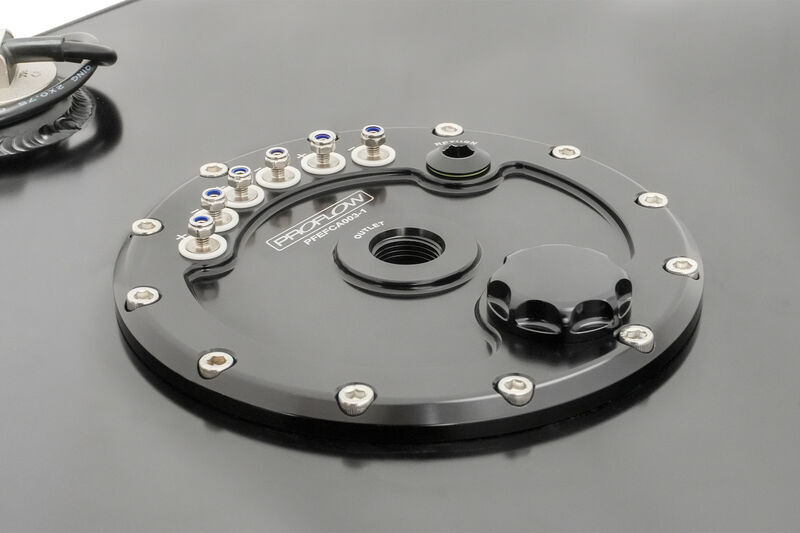

This hanger accepts all 38–40mm diameter fuel pumps, including popular Walbro (TI Automotive), AEM, Deatschwerks, and Proflow units. Each pump sits within the supplied FKM Viton sleeves, which absorb pump vibration for quieter operation. This pump can be mounted directly to Proflow baffled fuel cells (PFEFC8010, PFEFC8015, PFEFC8020) and includes a neatly placed AN16 fuel filler point. The central mounting post can also be cut down to suit shorter depth tanks (200-260mm tank depth).

Scalable Fueling

Run one, two, or all three pumps depending on your system’s requirements. Supplied port plugs make it easy to block unused positions, enabling seamless future upgrades without needing to replace lines or fittings. Simply add another fuel pump and your ready to go!

Wiring and Staging Options

Three pairs of high-current stainless steel terminals with Teflon insulators are included, allowing you to run pumps individually, in pairs, or stage them to activate progressively as fuel demand increases. Upgraded 14-gauge fuel pump wiring is available separately (PN: PFEBT-0101).

Construction and Finish

Every Proflow triple pump hanger is CNC-machined from billet aluminium, laser-etched, and black anodised to AS1231 (AA25) for maximum corrosion resistance. Fully compatible with E85 and all other corrosive fuels.

Port Configuration

  • Central Outlet: AN10 ORB
  • Return Port: AN8 ORB (plug included if not required)
  • Fuel Filler Cap: AN16 ORB

All ports can be stepped down to smaller sizes with the appropriate fittings (sold separately), making this hanger suitable for both high-performance and modest fuel systems.
