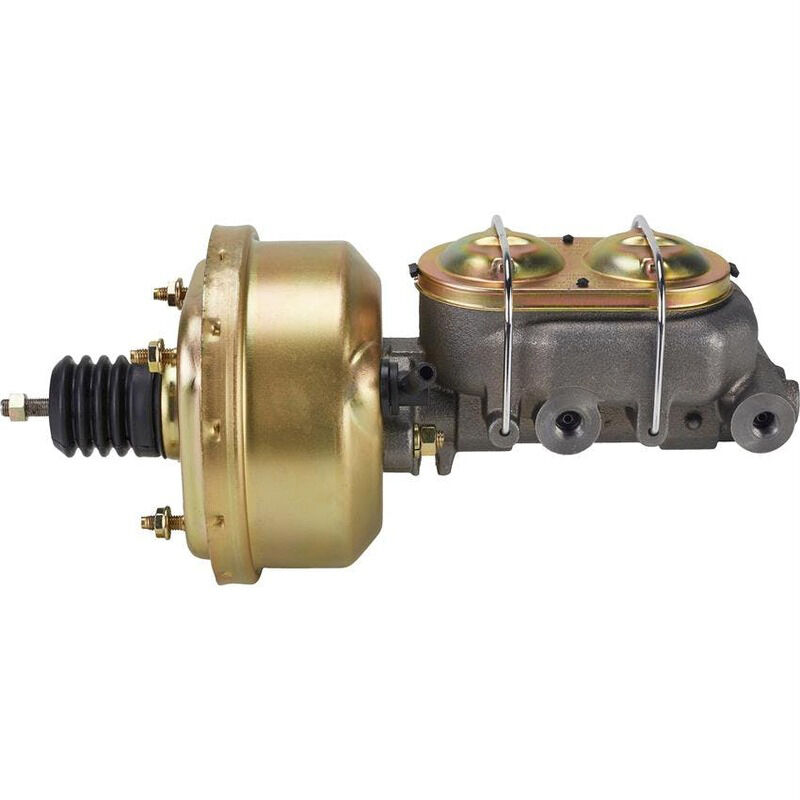

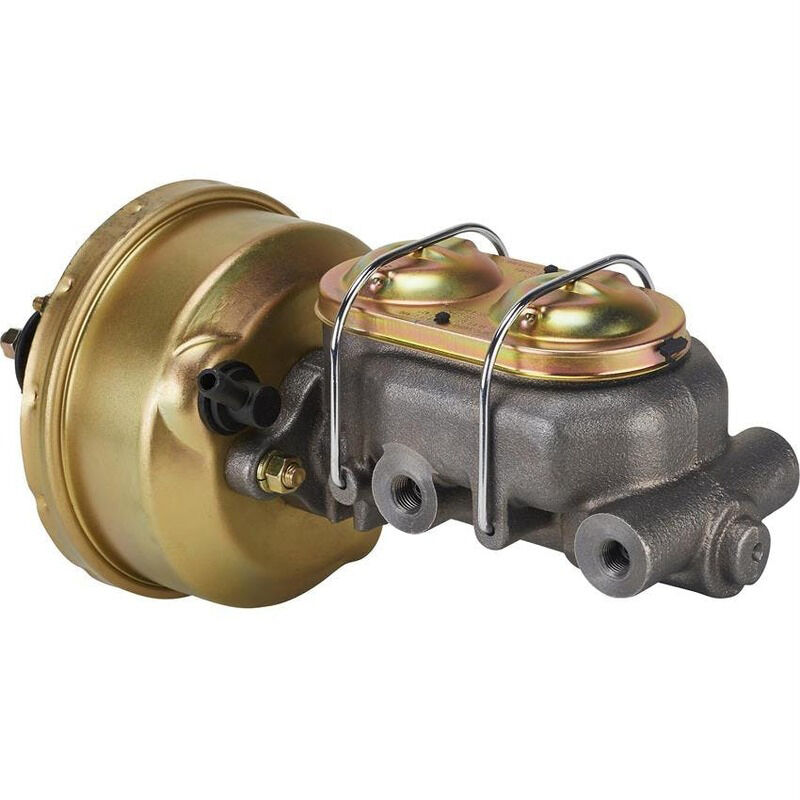

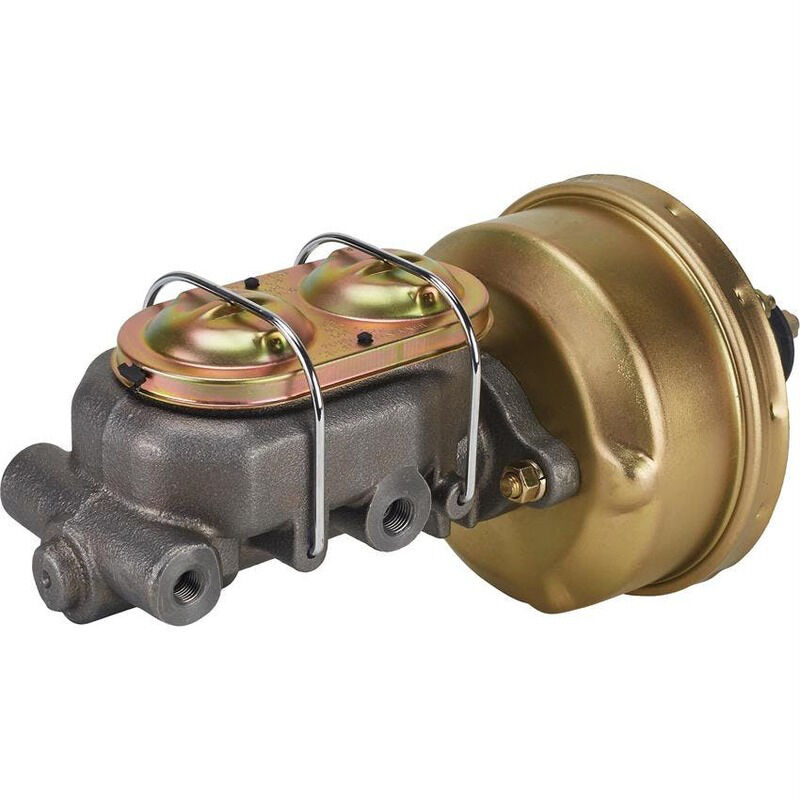

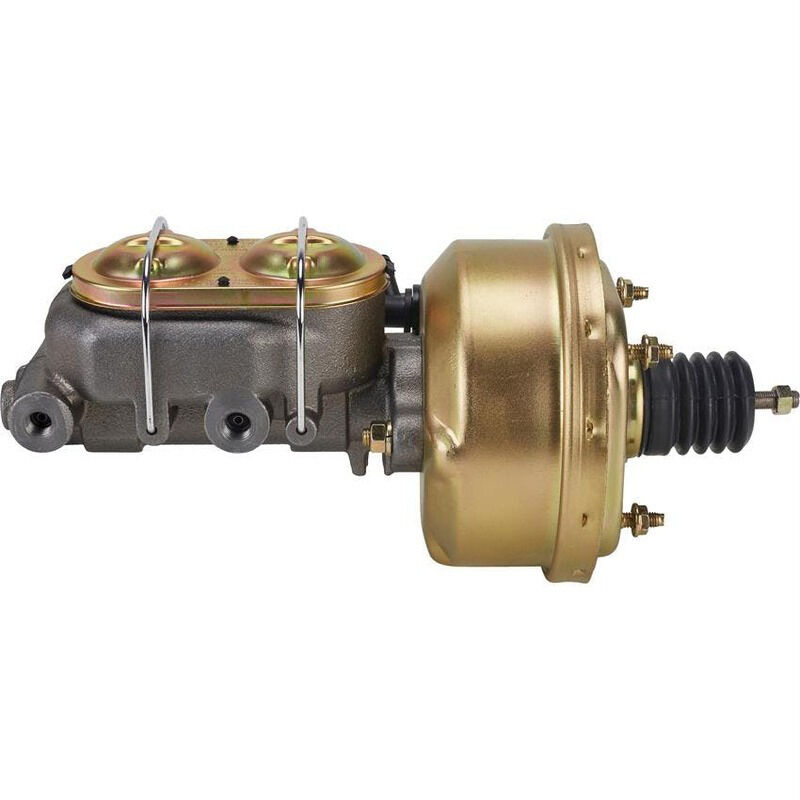

Compact for installation under floor or on firewall of almost any vehicle. Booster measures only 7" in diameter. Cast iron master cylinder has a 1-1/8" bore and is suited for disc-disc or disc-drum combinations.

Master cylinder features two 3/8"-24 inverted flare ports on each side (plugs are included for ports not in use).

Specs

  • Pushrod-to-mounting flange is 5-1/2"
  • Four bolts on 3-3/8" centers
  • Booster is 3.75" thick
  • Master cylinder combo is 11.875" from end of the master cylinder to the firewall
  • (4) qty 3/8"-24 outlet ports (2 plugs included)
  • 8" from mount to outer edge
