Proflow has Everything you need to really light up the open road with this dimmer switch kit

Kit Includes:

  • (1) Motors Floor-Mount Headlight Dimmer Switch
  • (1) Motors Dimmer Switch Pigtail Connector

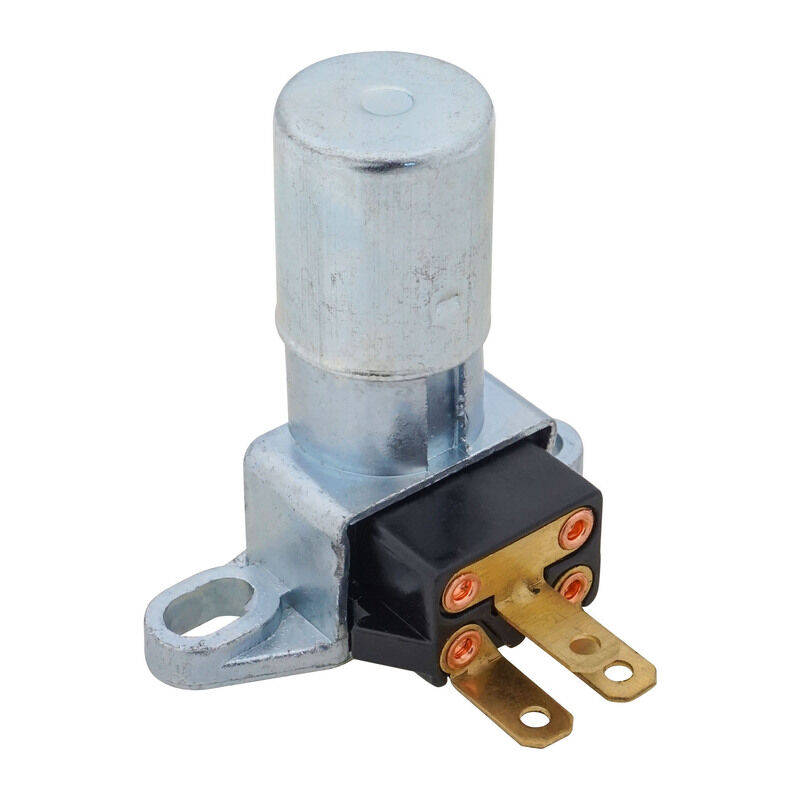

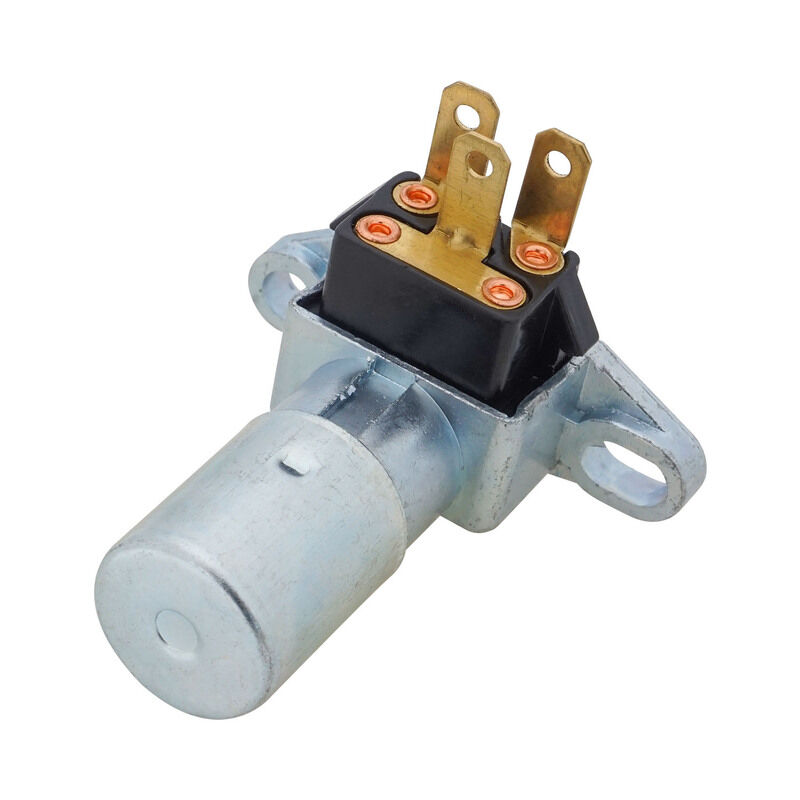

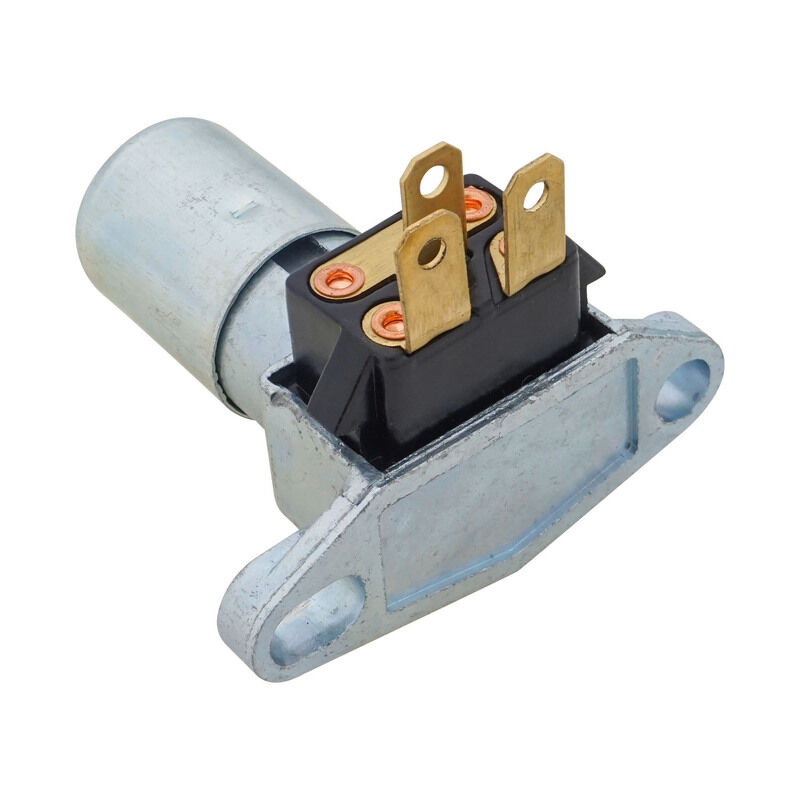

Proflow Floor-Mount Headlight Dimmer Switch, Black

The switch has 3 spade type terminals, With terminals facing you - the Center post goes to the headlight switch, bottom left post to the high beam, lower right to the low beam.

  • Overall Height: 2.125"
  • Center to Center: 1.750"
  • Terminal Type: Crimp

Proflow Dimmer Switch Pigtail Connector

Use this pigtail connector with our universal dimmer switch (91064054).

  • (3) 16 AWG wire leads
  • 12" long
